20 Mesh T304 Stainless .014
Need Mesh Discs?
Get an instant quote
Need a little help?
SKU #
020X020S0140_DISC

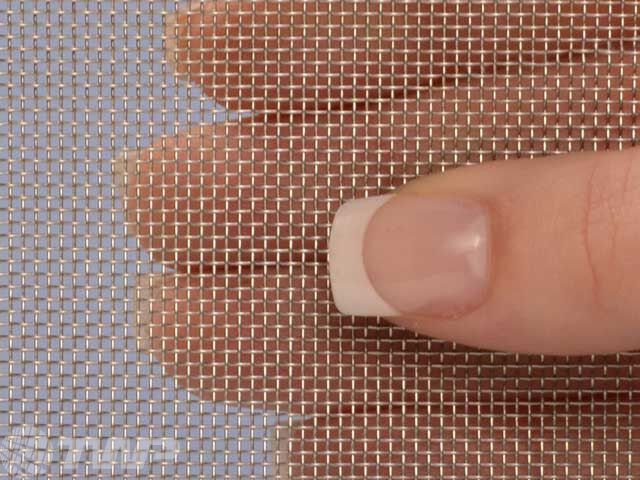

20 Mesh T304 Stainless .014" Wire Dia

20 Mesh T304 Stainless .014" Wire Dia
See full detail

Specs

U.S.Metric
Mesh Size20 per in20 per 2.54 cm
Wire Diameter0.0140 in0.3556 mm
Opening0.0360 in0.9144 mm
Opening Microns914914
Opening %51 %51 %
Overall Thickness0.0280 in0.7112 mm
Weight/Square Foot0.1600 lb0.0726 kg
Download product data sheet

Features

  • 20 wires per inch
  • Material is hard to bend by hand and can be cut with tin snips, aircraft shears or laser
  • Commonly used for air vents and filters
  • This sturdy market grade mesh is woven from a standard wire diameter which is heavier than the wire used to weave bolting cloth
  • Meets ASTM E 2016-15 and UNS S30400
20 Mesh T304 Stainless .014" Wire Dia
