14 Mesh T304 Stainless .017
Need Mesh Discs?
Get an instant quote
Need a little help?
SKU #
014X014S0170_DISC

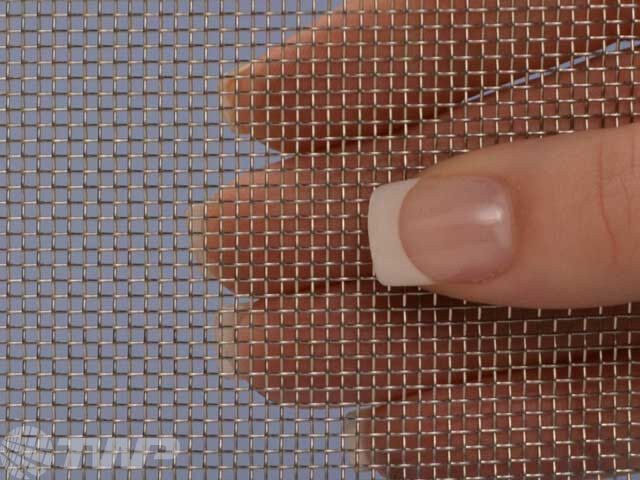

14 Mesh T304 Stainless .017" Wire Dia

14 Mesh T304 Stainless .017" Wire Dia
See full detail

Specs

U.S.Metric
Mesh Size14 per in14 per 2.54 cm
Wire Diameter0.0170 in0.4318 mm
Opening0.0544 in1.38176 mm
Opening Microns13831383
Opening %58 %58 %
Overall Thickness0.0340 in0.8636 mm
Weight/Square Foot0.3000 lb0.1362 kg
Download product data sheet

Features

  • 14 wires per inch
  • Material is hard to bend by hand and can be cut with tin snips, aircraft shears or laser
  • Commonly used for air vents and filters
  • This sturdy market grade mesh is woven from a standard wire diameter which is heavier than the wire used to weave bolting cloth
  • Meets ASTM E 2016-15 and UNS S30400
14 Mesh T304 Stainless .017" Wire Dia
