12 Mesh T316 Stainless .023
Need Mesh Discs?
Get an instant quote
Need a little help?
SKU #
012X012T0230_DISC

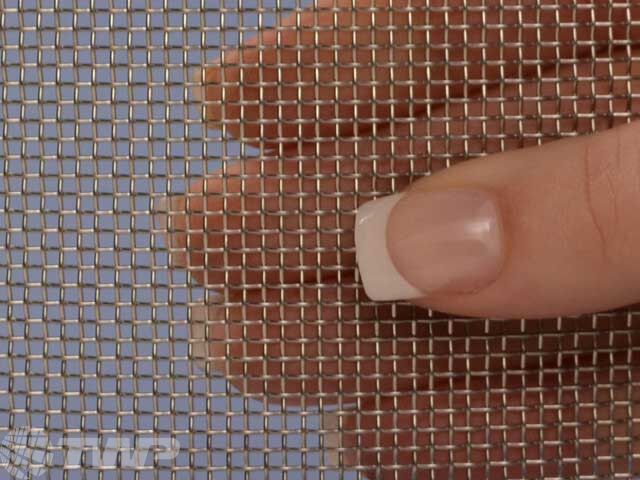

12 Mesh T316 Stainless .023" Wire Dia

12 Mesh T316 Stainless .023" Wire Dia
See full detail

Specs

U.S.Metric
Mesh Size12 per in12 per 2.54 cm
Wire Diameter0.0230 in0.5842 mm
Opening0.0603 in1.53162 mm
Opening Microns15331533
Opening %52 %52 %
Overall Thickness0.0460 in1.1684 mm
Weight/Square Foot0.4300 lb0.1952 kg
Download product data sheet

Features

  • 12 wires per inch
  • Material is hard to bend by hand and can be cut with tin snips or aircraft shears
  • Commonly used for air vents and filters
  • This sturdy market grade mesh is woven from a standard wire diameter which is heavier than the wire used to weave bolting cloth
  • Meets ASTM E 2016-15 and UNS S31600
12 Mesh T316 Stainless .023" Wire Dia
